Three Main Products

1. 1. 25-Layer Vertical Lifting System

2. 2. Compact Vertical Lifting Tower

3. 3. Large Cabin Vertical Lifting System

4.

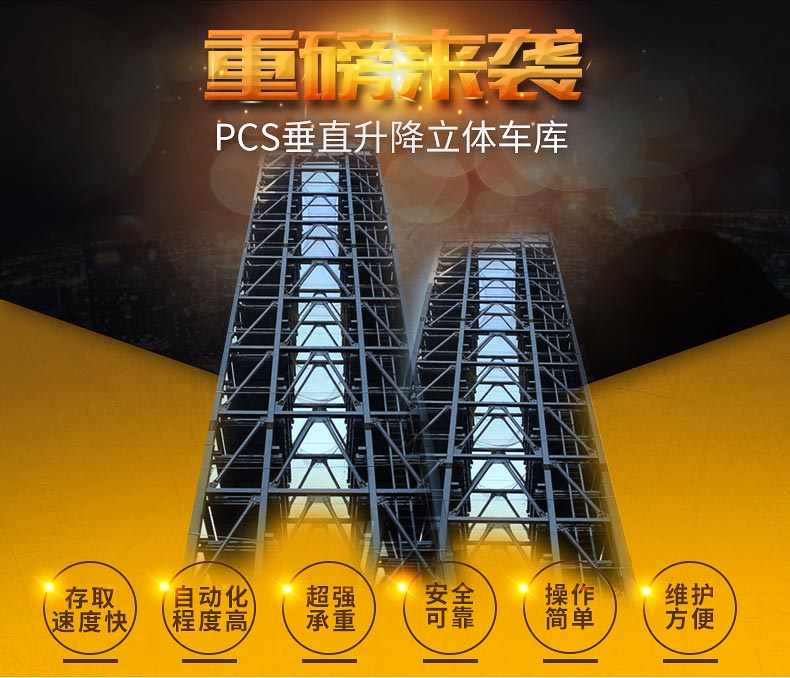

25-Layer Vertical Lifting System

Working Principle:
The PCS-type vertical lifting mechanical parking system (also known as a tower-style automated parking garage) uses a carrier to achieve vehicle storage and retrieval through vertical movement. The lifting mechanism raises the vehicle to the designated floor, and then a transfer mechanism moves the vehicle into the parking space. Conversely, the system retrieves a vehicle by transferring it from the parking space to the lifting mechanism, which then descends to the entrance/exit. A rotating platform turns, the door opens, and the driver can drive the vehicle out.

Product Features:

• Minimal land usage with high vehicle capacity, averaging 1 square meter per car.

• Easy operation via touchscreen/card swipe.
• Variable frequency speed control ensures smooth, efficient, and intelligent operation with high safety.

• Front-in, front-out design eliminates the need for reversing.

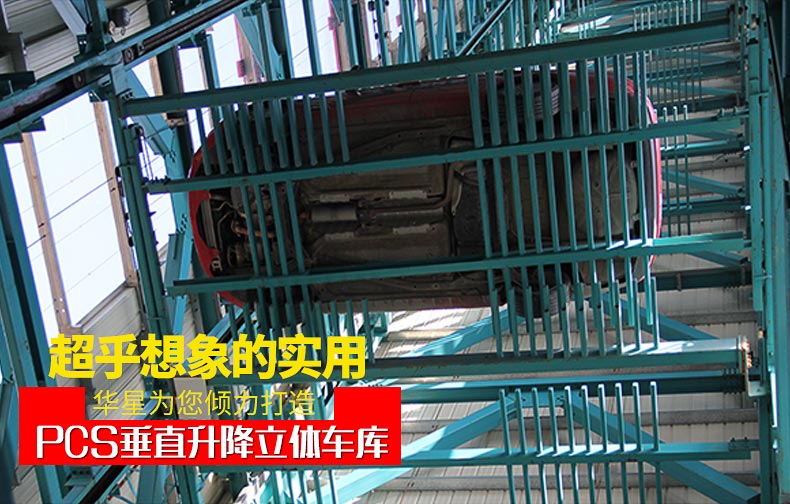

• Comb-style transfer system enables fast access without pallet return.

• Ideal for outdoor locations with high parking demand and limited space, such as hospitals, CBDs, and parking lots.

•

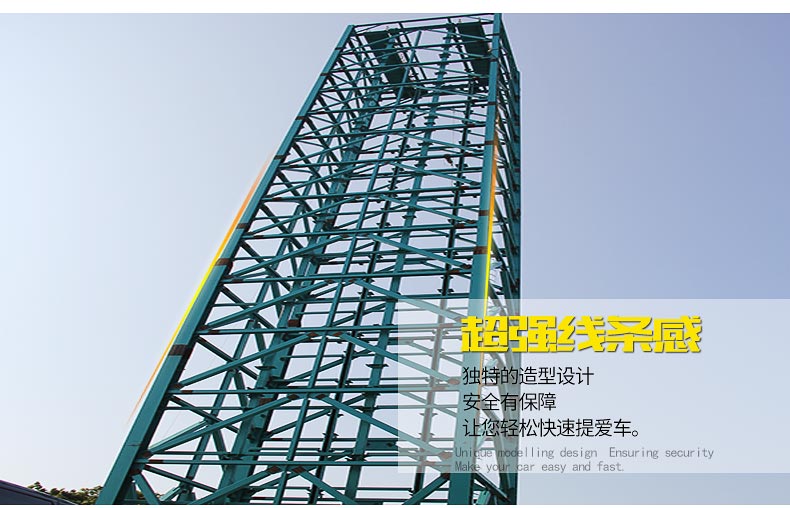

Compact Vertical Lifting Tower

Working Principle:

The lifting mechanism raises the vehicle to the target floor, and a horizontal transfer mechanism moves it into the parking space. For retrieval, the process is reversed: the vehicle is transferred to the lifting mechanism, which then lowers it to the entrance/exit for the driver.

Product Features:

• Shared lifting platform reduces footprint while maximizing capacity.
• User-friendly touchscreen/card swipe operation.
• Variable frequency speed control with synchronized motors ensures stable, efficient, and safe lifting.

• Front-in, front-out design, no reversing required.

• Comb-style transfer system for rapid access.

• Suitable for height-restricted urban areas with high parking demand, such as hospitals, CBDs, and parking lots.

Large Cabin Vertical Lifting System

Working Principle:
Combines features of vertical lifting and horizontal movement systems. A comb-style carrier transfers the vehicle to a large elevator, which moves vertically while the carrier shifts horizontally. Upon reaching the target floor, the vehicle is transferred longitudinally into the parking space.

Product Features:

• Shared lifting platform with high single-layer capacity.
• Simple operation via touchscreen/card swipe.

• Front-in, front-out design, eliminating reversing.

• Variable frequency control ensures smooth, intelligent, and safe operation.
• Automated comb-style carrier with self-centering system for fast access.

• Flexible exit options: ground, middle, or top floors.

• Ideal for space-constrained, height-restricted areas like hospitals, CBDs, and parking lots.

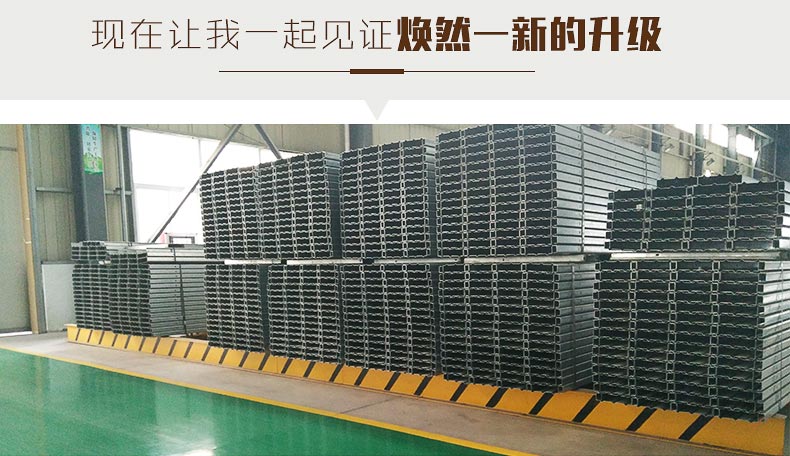

We have advanced raw materials

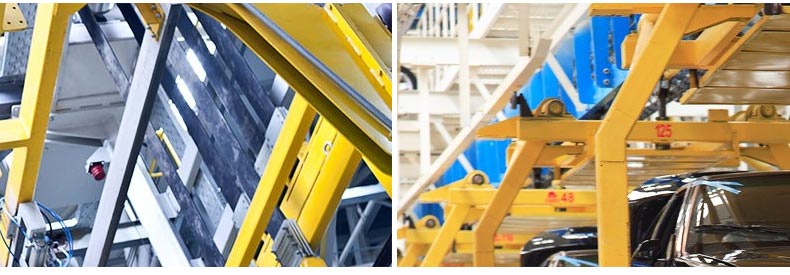

 Welding beautiful smooth.                                                            Elegant appearance, economical, safe and secure

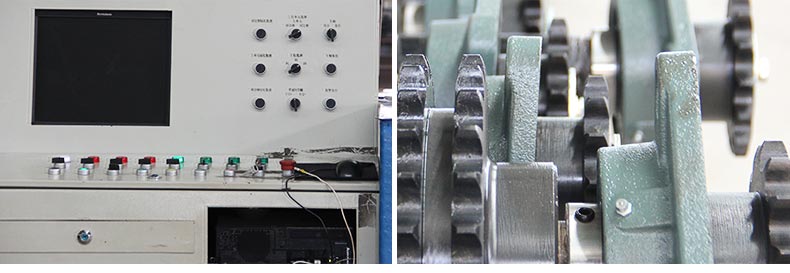

Senior Engineer Monitoring                                       High accuracy and little error
